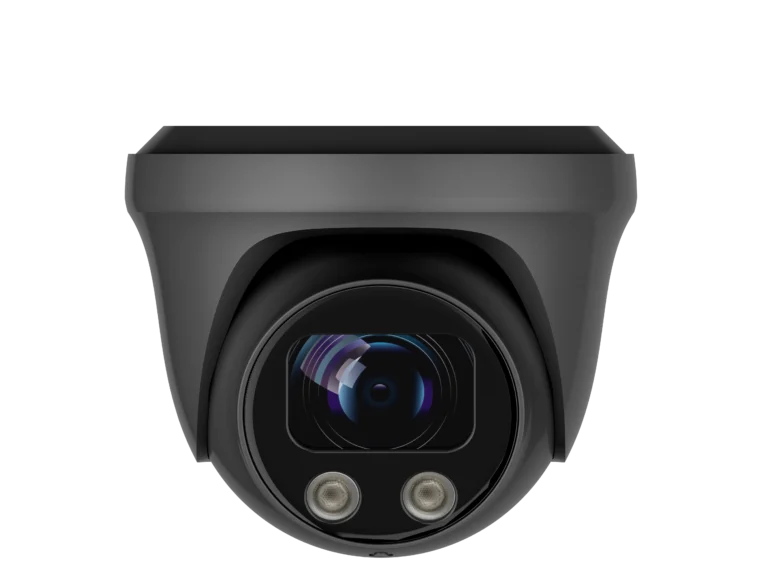

4MP ColourVision IP POE Camera 24/7 Colour Images
Description
Specification
Description
- 1/2.8″ SONY Starvis Back-illuminated CMOS sensor
- 4MP high resolution
- Full time colour
- Warm White (4000K)
- 2.8mm fixed lens
- True day/night
- OSD menu
- Smart light
- Up to 30m white light distance
- IP67 weatherproof Metal Casing
- 12V DC
- Triple stream
- Supports 2-way Audio
- Supports on board storage (up to 256GB)
- 12V DC & PoE (802.3af)
Specification
| AES | AUTO |
| AGC | AUTO |
| BLC/SSDR (WDR) | HDR: 120dB |
| Communication System | PAL/NTSC |
| Compression Method | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| DNR | 3DNR |
| Dimensions | ￠128 x 108(H)mm |
| Effective Pixel | 2616 (H) x 1964 (V) |
| Gross Weight | 900g |
| IR Illumination | No – Full Colour, Warm White (4000K) |
| Image Sensor (CCD) | 1/2.8″ 4MP SONY Starvis Back-illuminated CMOS sensor |
| Lens | 2.8mm |
| Minimum Illumination – Colour | 0 Lux |
| Model | CV4000 |
| Operating Temperature | -10℃ ~ +60℃ RH95% Max |
| POE | Optional, Support IEEE 802.3af (ONVIF) |
| Power Source | POE OR 12v DC |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Shutter | Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec |
| Video output | Network |
| Within Range of IR LEDs | Warm light LED 4000K, up to 30m |
